Please note this is the 13 Amp version of the KM714 model- 16 Amp also available.
Standard price £2150 ex VAT
Order any of our top loading kilns and receive FREE kerbside delivery (UK mainland)- click here for details.

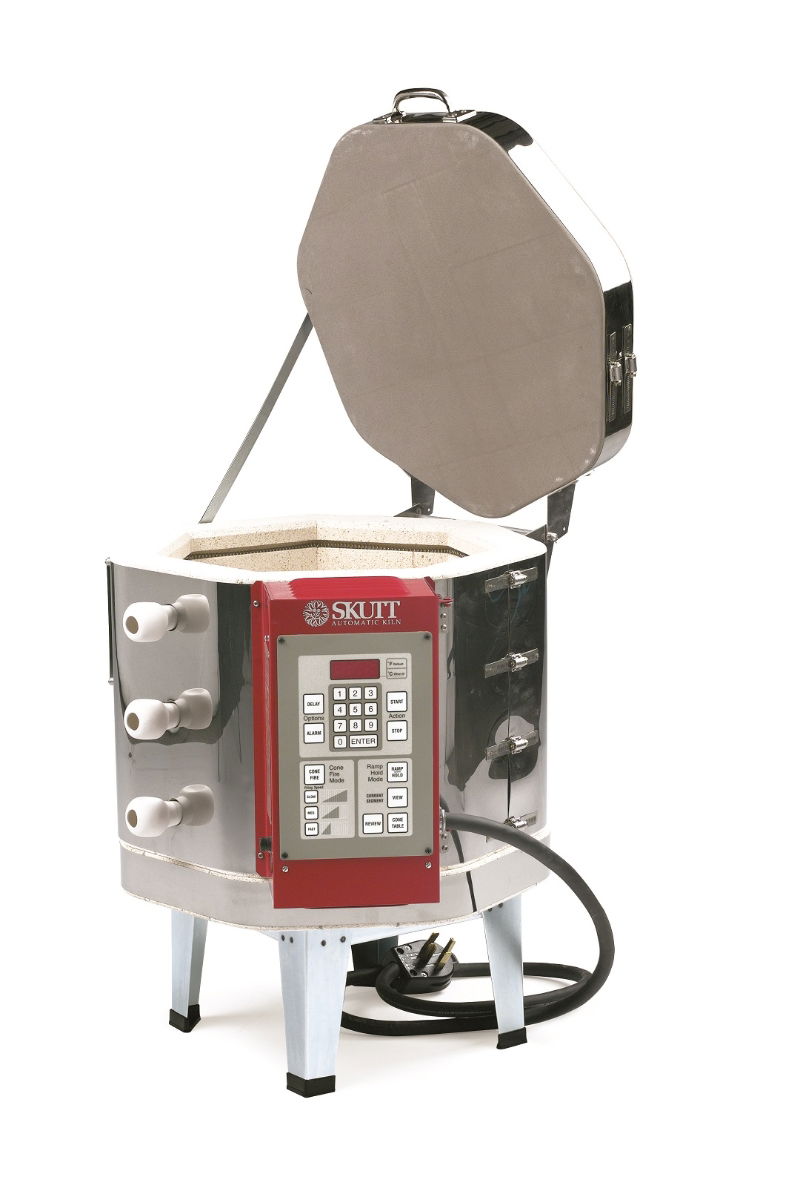

Seven-sided top loading electric kiln with KilnMaster controller.
The compact and versatile KM714 is the perfect blend of a home studio model and a great production studio kiln, and is ideal for ceramic artists and potters who demand precision and consistency in their firing process. With its 13 amp KilnMaster controller, this top-loading kiln provides precise temperature control, ensuring that your pieces are fired to perfection every time. The top-loading design provides easy access to your pieces, saving you time and effort, while the durable construction ensures that this kiln will last for years to come.
The Cromartie Hobbytech kiln has long been a popular choice for both ceramic hobby use and as a test kiln. The KM714 is an ideal kiln as an addition or replacement. As with all KM kilns, it comes complete with the heavily featured Kilnmaster controller which is configurable in Ramp/Dwell or Cone mode, it's many features allow for easy firing of both ceramics or glass and the Easy View panel is fitted as standard. This model comes complete with a furniture set comprising two shelves, three props, three spacers and a small quantity of batt wash to get started. The KM714 offers a great 40 litre capacity that can be plugged in to a standard single-phase electric socket. This kiln is ideally suited to firing many smaller pieces or perhaps one or two larger project items, but has all the bells and whistles of the larger KM models in a more compact size. Being slightly smaller, the 13 amp version is portable for use in different locations and is easy to load.
Main features:
• Solid construction with a sectional design, giving the ability to easily dismantle the kiln for relocation & site the kiln virtually anywhere.
• Conservatively rated Kanthal A1 kiln elements and wiring.
• 3 metre mains cable included with kiln (longer cable can be purchased for an additional charge).
• Spare thermocouple, 3 x 04 test self supporting cones and supporting manual included.
• 24 month warranty included (excluding kiln elements).
• FREE DELIVERY as standard (UK mainland) Click here for details.
• Commando Plug available as an optional extra (we recommend this for easy safe maintenance).
• Health and Safety “best practice” captive key interlock fitted as standard.
• Kilns include double relay system for additional security.
• *KilnMaster controller (up to 64 segments) fitted as standard. (KMT touchscreen controller also available as an optional upgrade.)
• The reversible kiln lid is specially coated to eliminate build up of dust & debris.
• Two position lid brace- one for everyday kiln use & a second for allowing full access to the kiln chamber for unloading.
Download our top loading kiln leaflet here.
NB Hard copy available by request.
The kiln comes wired with a standard UK domestic plug. If you are using the kiln outside the UK, we can fit the following plugs in house.
Kiln Specifications:
Power Rating:
Single Phase / Volts 230 / 13 amps / Watts 3000
NB Always size electrical supply for "continuous" load**
Maximum Operating Temperature:
13 Amp- 1200 degrees+ Centigrade / Cone 8
Power rating (Single Phase) 3 Kw (13 Amp socket) or 16 Amp available for Cone 10 1300 C (fixed wiring required)
Firing Capacity- 40 litres 1.4 cubic ft.
Opening: 36cm/14.38 inches.
Depth: 34cm/13.5 inches.
Shipping Weight : 50kg/110lbs
We recommend a clearance of 18 inches around the kiln- please refer to the product images in each model for product dimensions. If you have any questions or are unsure of your requirements, please don't hesitate to contact us and we'll be happy to help.
All KilnMaster kilns are CE marked and are additionally fitted with an electro-mechanical Interlock as standard in compliance with The Health & Safety At Work Act 1974. All KM kilns are supplied with Operators Manual, Instructional DVD and a spare Thermocouple.
Please talk to our technical support for advice.
Free Delivery
Whether you prefer kerbside or in-position delivery*, we've got you covered. And the best part? Kerbside delivery for our top loading kilns is completely free within the UK mainland. For those in the Highlands and Islands or worldwide, don't worry – we can provide you with a custom delivery quote. Just keep in mind, if you have restricted access or a narrow road at your address, a dedicated vehicle may be necessary, which may incur additional charges. We'll reach out to confirm on receipt of your order.
*For an even more seamless experience, we can also offer in-position delivery, full electrical connection, commissioning, and operational training for an extra charge. These delivery charges will be based on your specific requirements and circumstances. Get in touch with our team at 01782 319435 to learn about the available options and get a custom quote today.
